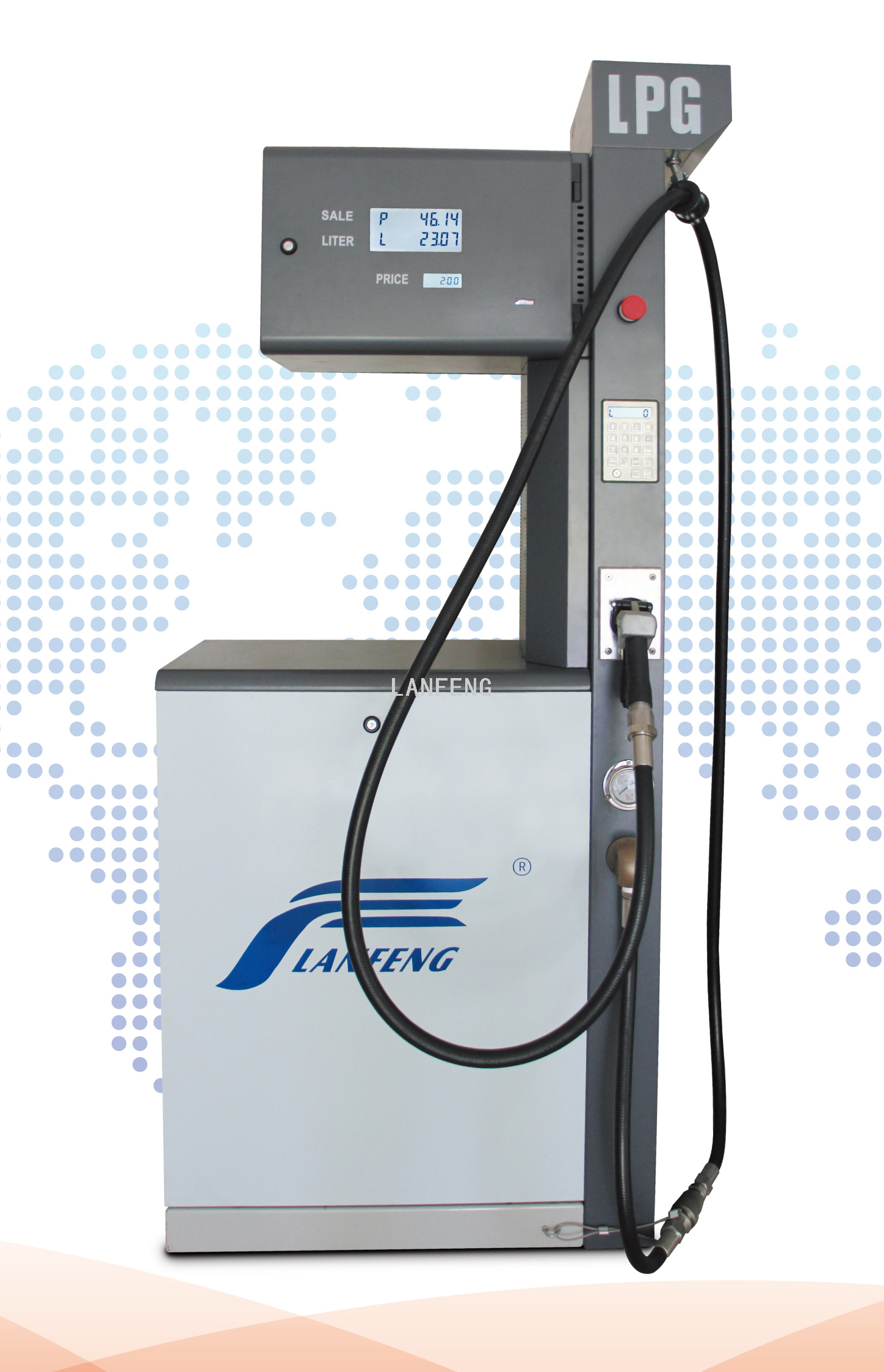

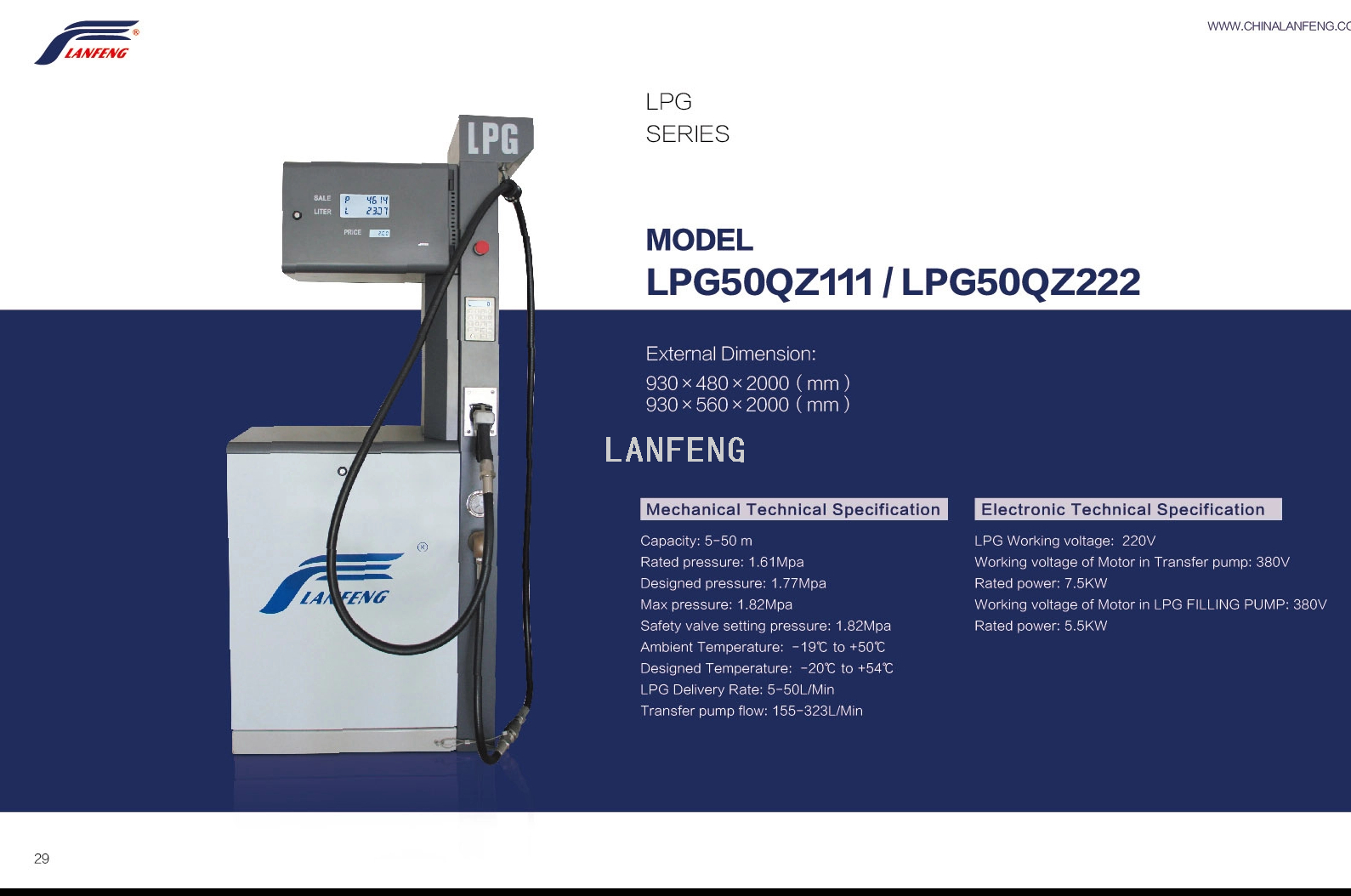

LPG50QZ111LPG50QZ222

External Dimension:930x480x2000(mm)930x560x2000(mm)
WWW.CHINALANFENG.COM
Mechanical Technical Specific
Capacity: 5-50 m
Rated pressure: 1.61Mpa
Designed pressure: 1.77Mpa
Max pressure: 1.82Mpa
Safety valve setting pressure: 1.82Mpa
ation
Electronic Technical SpecificationLPG Working voltage: 220VWorking voltage of Motor in Transfer pump: 380VRated power: 7.5KWWorking voltage of Motor in LPG FILLING PUMP: 380VRated power: 5.5KW
Ambient Temperature:-19℃ to +50℃
Designed Temperature:-20℃ to +54℃
LPG Delivery Rate: 5-50L/Min
Transfer pump flow: 155-323L/Min

Quantity:
Availability:





Inquire Add to Basket

Model:
LPG50QZ111LPG50QZ222
Brand:
LANFENG

Product Description

External Dimension:930x480x2000(mm)930x560x2000(mm)

WWW.CHINALANFENG.COM

Mechanical Technical Specific

Capacity: 5-50 m

Rated pressure: 1.61Mpa

Designed pressure: 1.77Mpa

Max pressure: 1.82Mpa

Safety valve setting pressure: 1.82Mpa

ation

Electronic Technical SpecificationLPG Working voltage: 220VWorking voltage of Motor in Transfer pump: 380VRated power: 7.5KWWorking voltage of Motor in LPG FILLING PUMP: 380VRated power: 5.5KW

Ambient Temperature:-19℃ to +50℃

Designed Temperature:-20℃ to +54℃

LPG Delivery Rate: 5-50L/Min

Transfer pump flow: 155-323L/Min

Lanfeng Technology Inc is one of the large-scale manufacturers specialized in developing and producing fuel dispenser, gas dispenser and all components for more than 20years.
