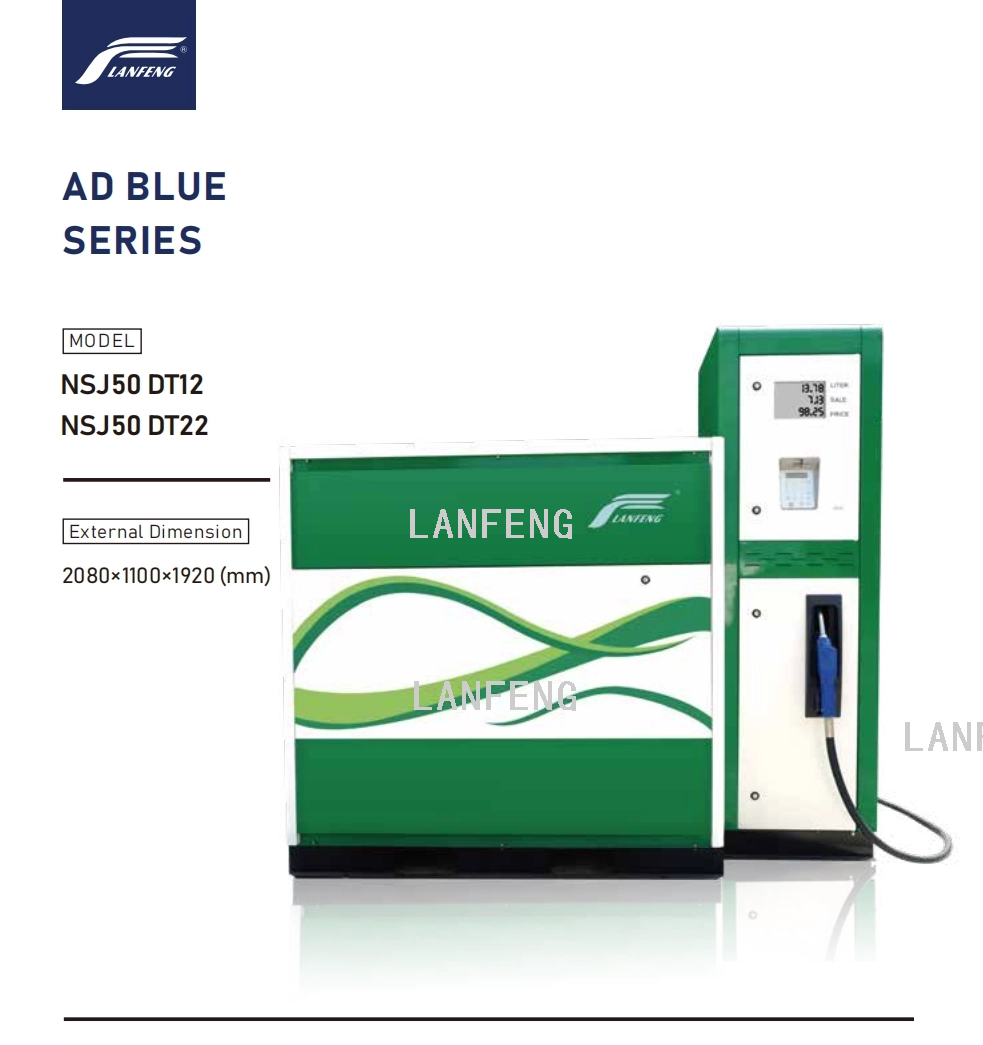

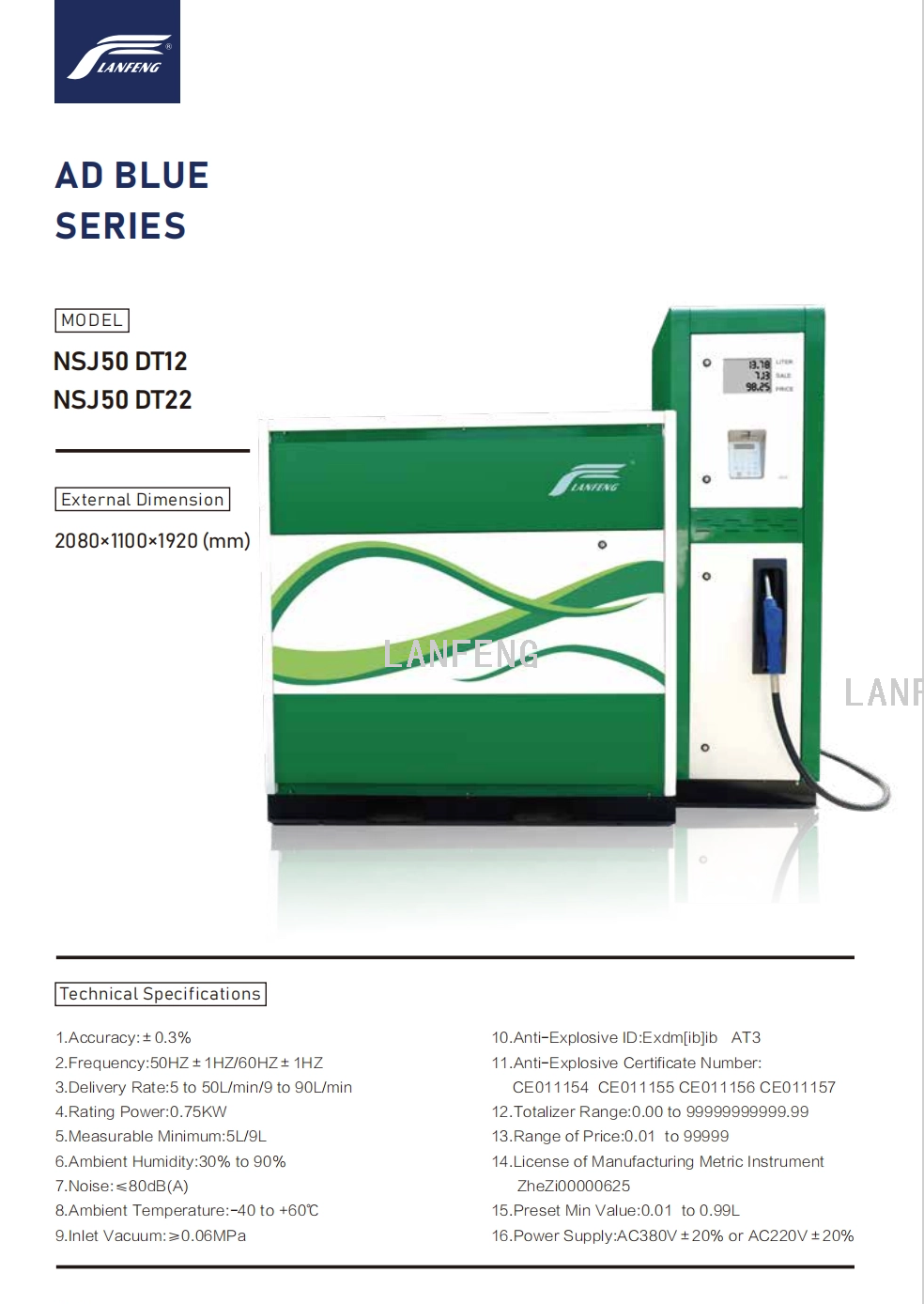

External Dimension2080x1100x1920(mm)
Technical Specifications
1.Accuracy:+ 0.3%2.Frequency:50HZ+1HZ/60HZ+1HZ
3.Delivery Rate:5 to 50L/min/9 to 90L/min4.Rating Power:0.75KW
5.Measurable Minimum:5L/9l
6.Ambient Humidity:30% to 90%
7.Noise:<80dB(A)
8.Ambient Temperature:-40 to +60℃
9.inlet Vacuum:>0.06MPa
33WWW.CHINALANFENG.COM
10.Anti-Explosive ID:Exdm[iblib AT311.Anti-Explosive Certificate Number:
CE011154 CE011155 CE011156 CE01115712,Totalizer Range:0.00 to 99999999999.9913.Range of Price:0.01 to 99999
14.License of Manufacturing Metric Instrument
ZheZi00000625
15.Preset Min Value:0.01 to 0.99L
16.Power Supply:AC380V+20% or AC220V+20%
