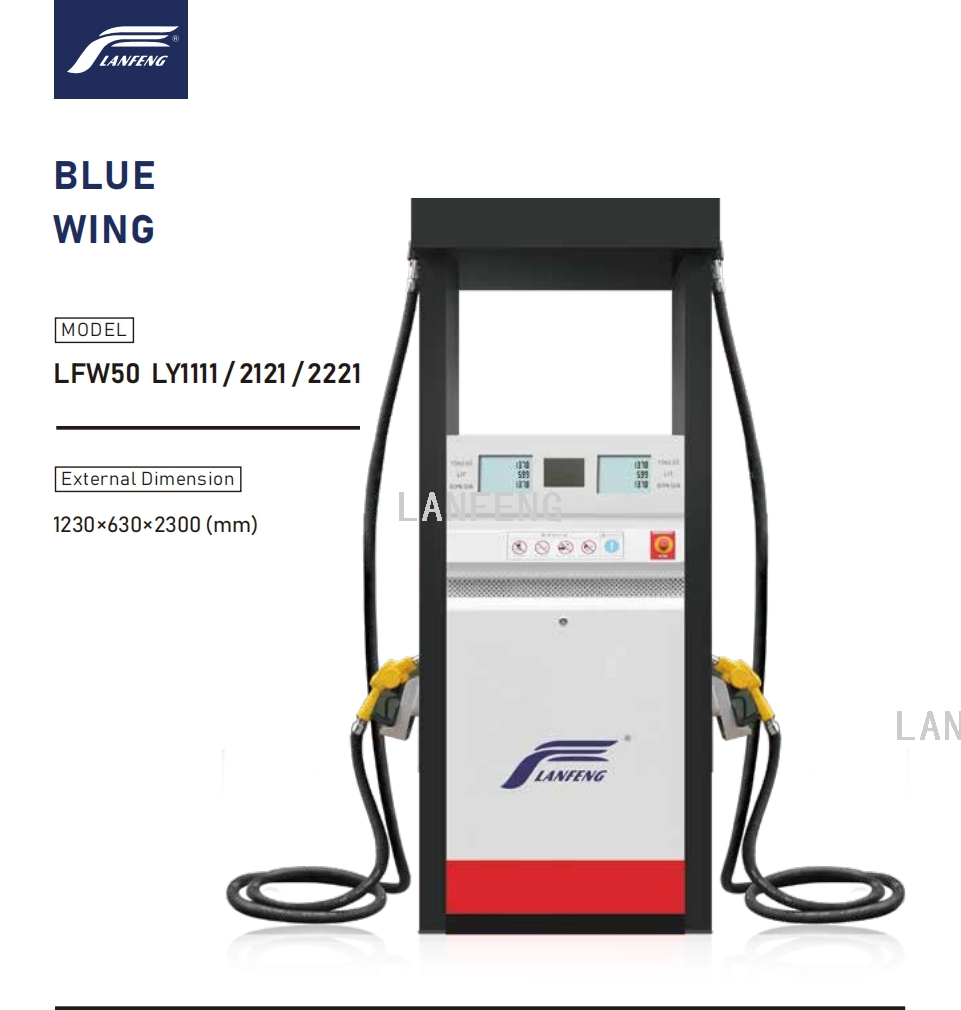

External Dimension
1230x630x2300(mm)

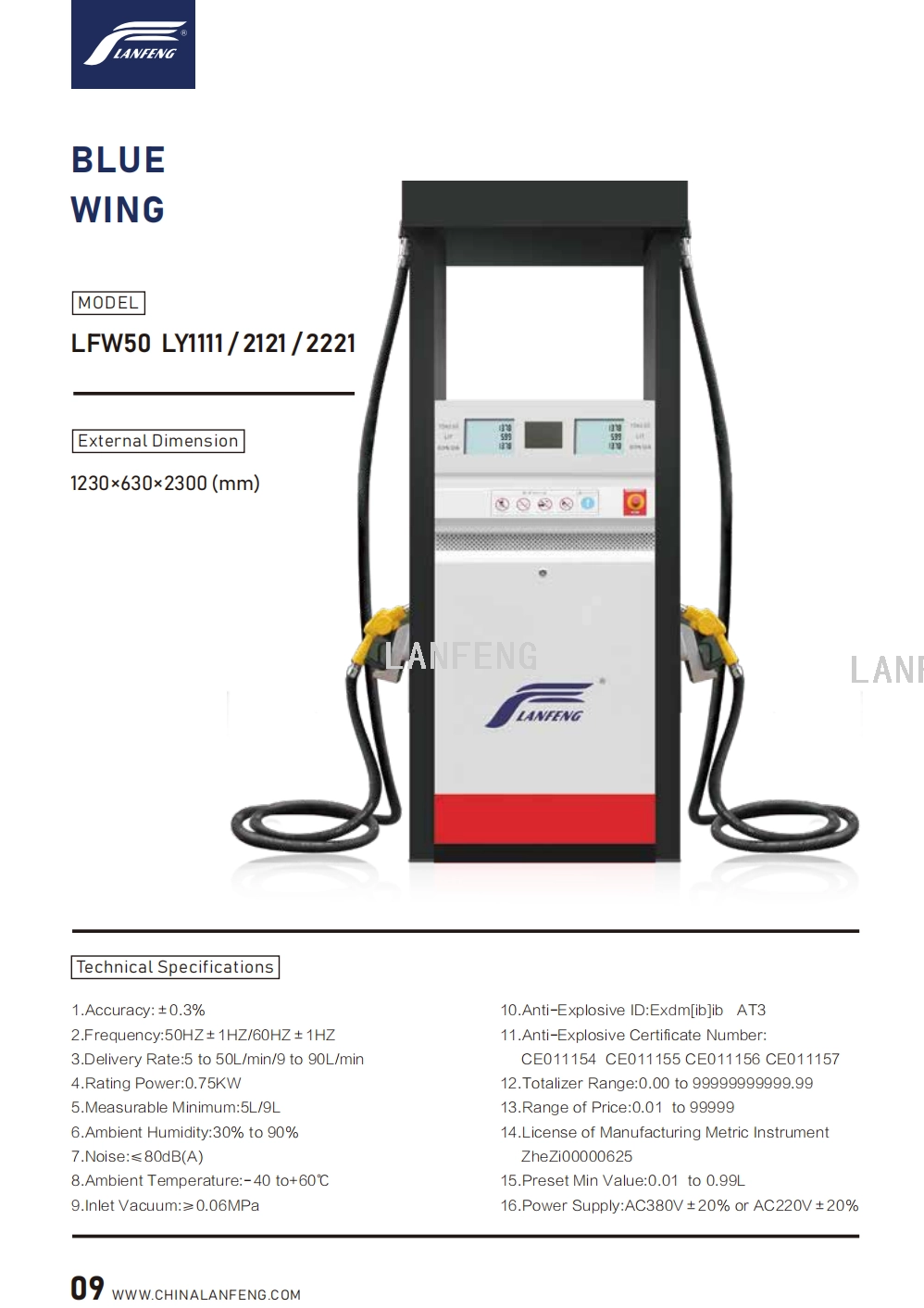

Technical Specifications
1.Accuracy:+0.3%2.Frequency:50HZ+1HZ/60HZ+1HZ3.Delivery Rate:5 to 50L/min/9 to 90L/min4.Rating Power:0.75KW5.Measurable Minimum:5L/9L6.Ambient Humidity:30% to 90%
7.Noise:<80dB(A)
8.Ambient Temperature:-40 to+60℃9.Inlet Vacuum:>0.06MPa
09、WWW.CHINALANFENG.COM
10.Anti-Explosive lD:Exdm[iblib AT311.Anti-Explosive Certificate Number:CE011154 CE011155 CE011156 CE01115712,Totalizer Range:0.00 to 99999999999.9913.Range of Price:0.01 to 9999914.License of Manufacturing Metric InstrumentZheZi00000625
15.Preset Min Value:0.01 to 0.99L16.Power Supply:AC380V+20% or AC220V+20%
