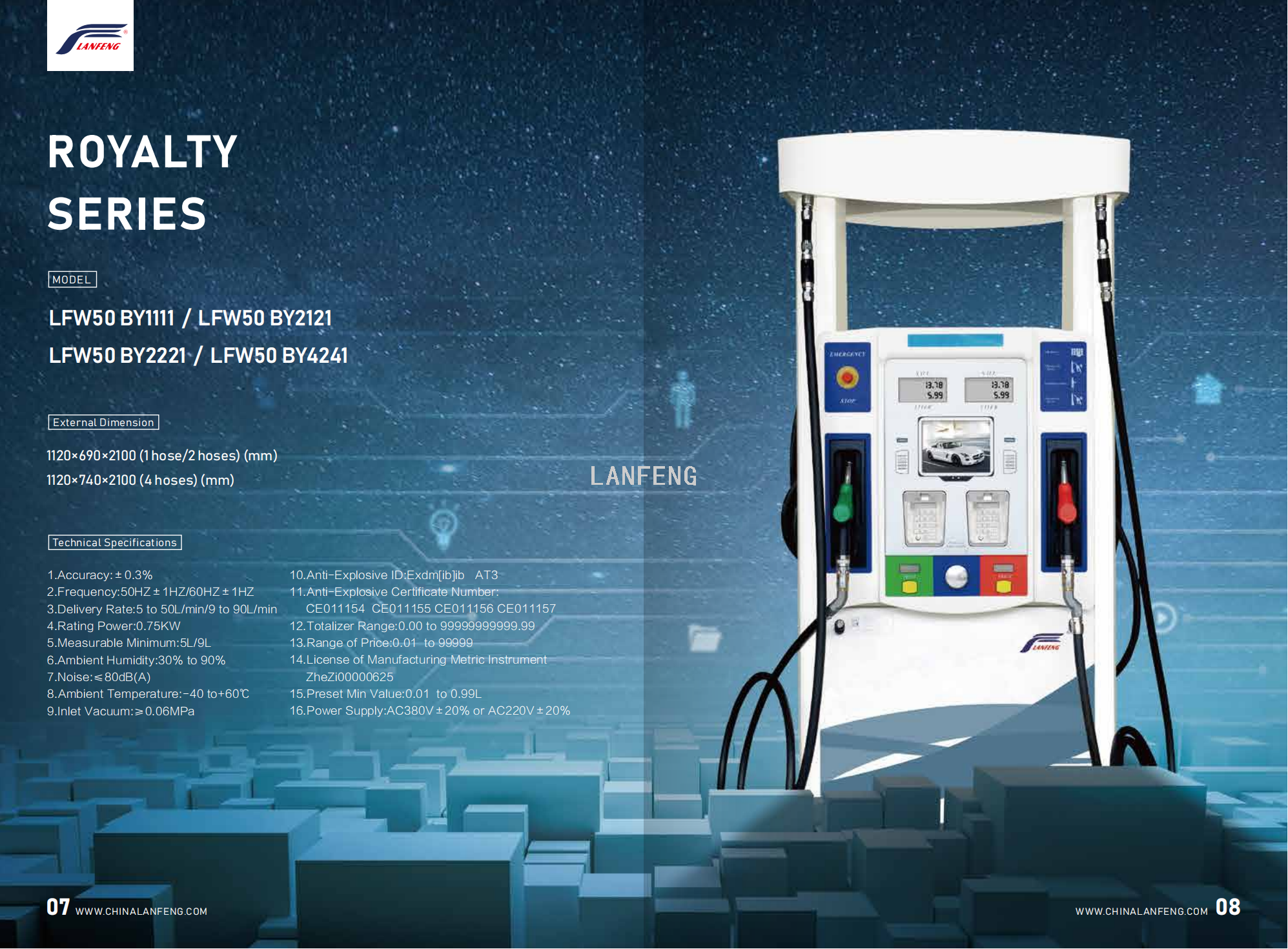

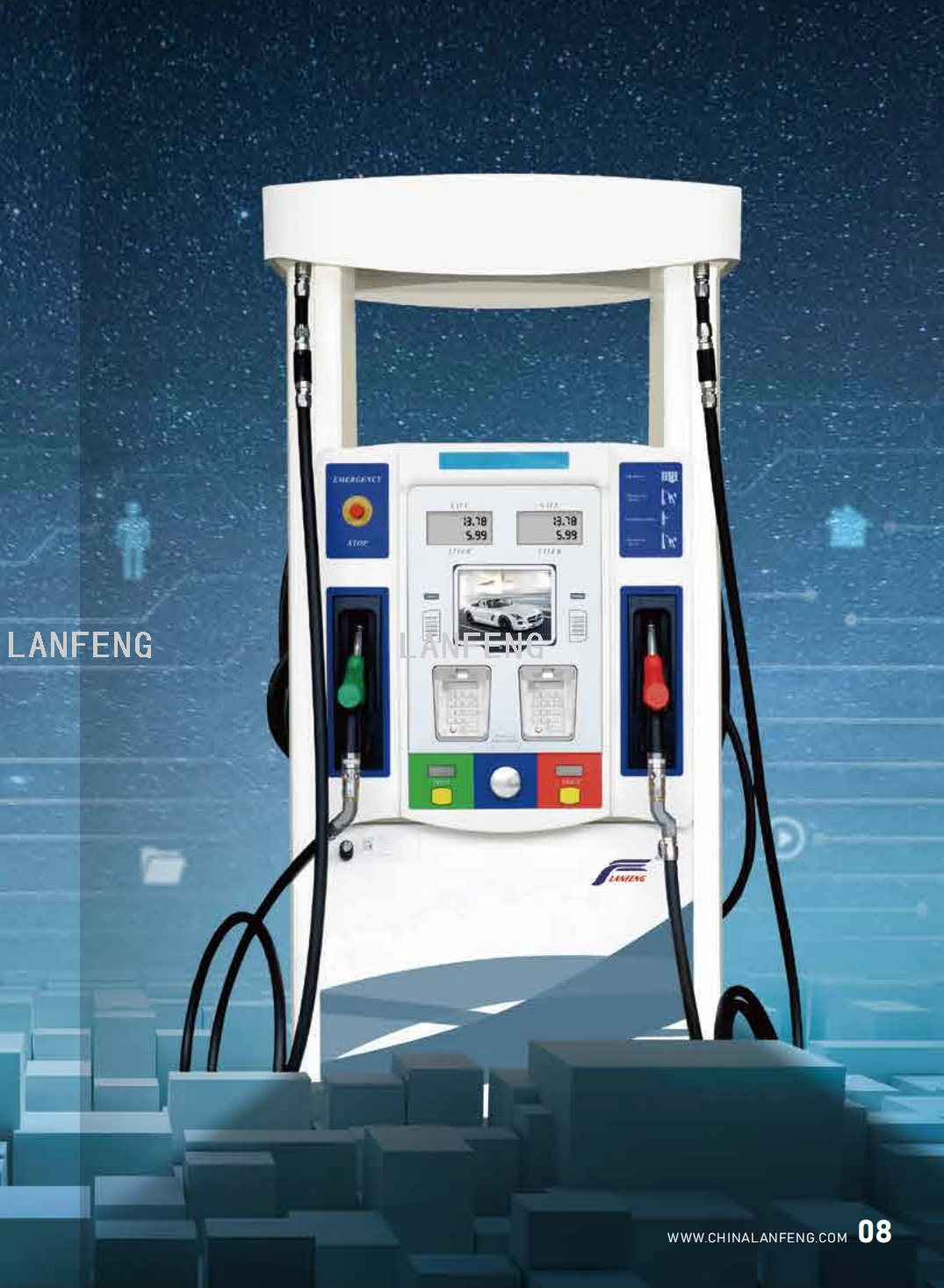

LFW50 BY1111 /LFW50 BY2121 LFW50 BY2221/ LFW50 BY4241

LFW50 BY1111 /LFW50 BY2121 LFW50 BY2221/ LFW50 BY4241

[External Dimension
1120x690x2100(1hose/2hoses)(mm)1120x740x2100(4hoses)(mm)
TechnicalSpecifications
1.Accuracy:+ 0.3%2.Frequency:50HZ+1HZ/60HZ+1HZ3.Delivery Rate:5 to 50L/min/9 to 90L/min4.Rating Power:0.75KW5.Measurable Minimum:5L/9L6.Ambient Humidity:30% to 90%7.Noise:s80dB(A)8.Ambient Temperature:-40 to+60℃9.Inlet Vacuum:>0.06MPa
10.Anti-Explosive lD:Exdm[ib]ib AT3
11.Anti-Explosive Certificate Number:
CE011154 CE011155 CE011156 CE011157
12.Totalizer Range:0.00 to 99999999999.99
13.Range of Price:0.01 to 99999
14.License of Manufacturing Metric Instrument
ZheZi00000625
15.Preset Min Value:0.01 to 0.99L
16.Power Supply:AC380V+20% or AC220V+20%

Quantity:
Availability:





Inquire Add to Basket

Model:
LFW50 BY1111 /LFW50 BY2121 LFW50 BY2221/ LFW50 BY4241
Brand:
LANFENG

Product Description

[External Dimension

1120x690x2100(1hose/2hoses)(mm)1120x740x2100(4hoses)(mm)

TechnicalSpecifications

1.Accuracy:+ 0.3%2.Frequency:50HZ+1HZ/60HZ+1HZ3.Delivery Rate:5 to 50L/min/9 to 90L/min4.Rating Power:0.75KW5.Measurable Minimum:5L/9L6.Ambient Humidity:30% to 90%7.Noise:s80dB(A)8.Ambient Temperature:-40 to+60℃9.Inlet Vacuum:>0.06MPa

10.Anti-Explosive lD:Exdm[ib]ib AT3

11.Anti-Explosive Certificate Number:

CE011154 CE011155 CE011156 CE011157

12.Totalizer Range:0.00 to 99999999999.99

13.Range of Price:0.01 to 99999

14.License of Manufacturing Metric Instrument

ZheZi00000625

15.Preset Min Value:0.01 to 0.99L

16.Power Supply:AC380V+20% or AC220V+20%

Lanfeng Technology Inc is one of the large-scale manufacturers specialized in developing and producing fuel dispenser, gas dispenser and all components for more than 20years.
