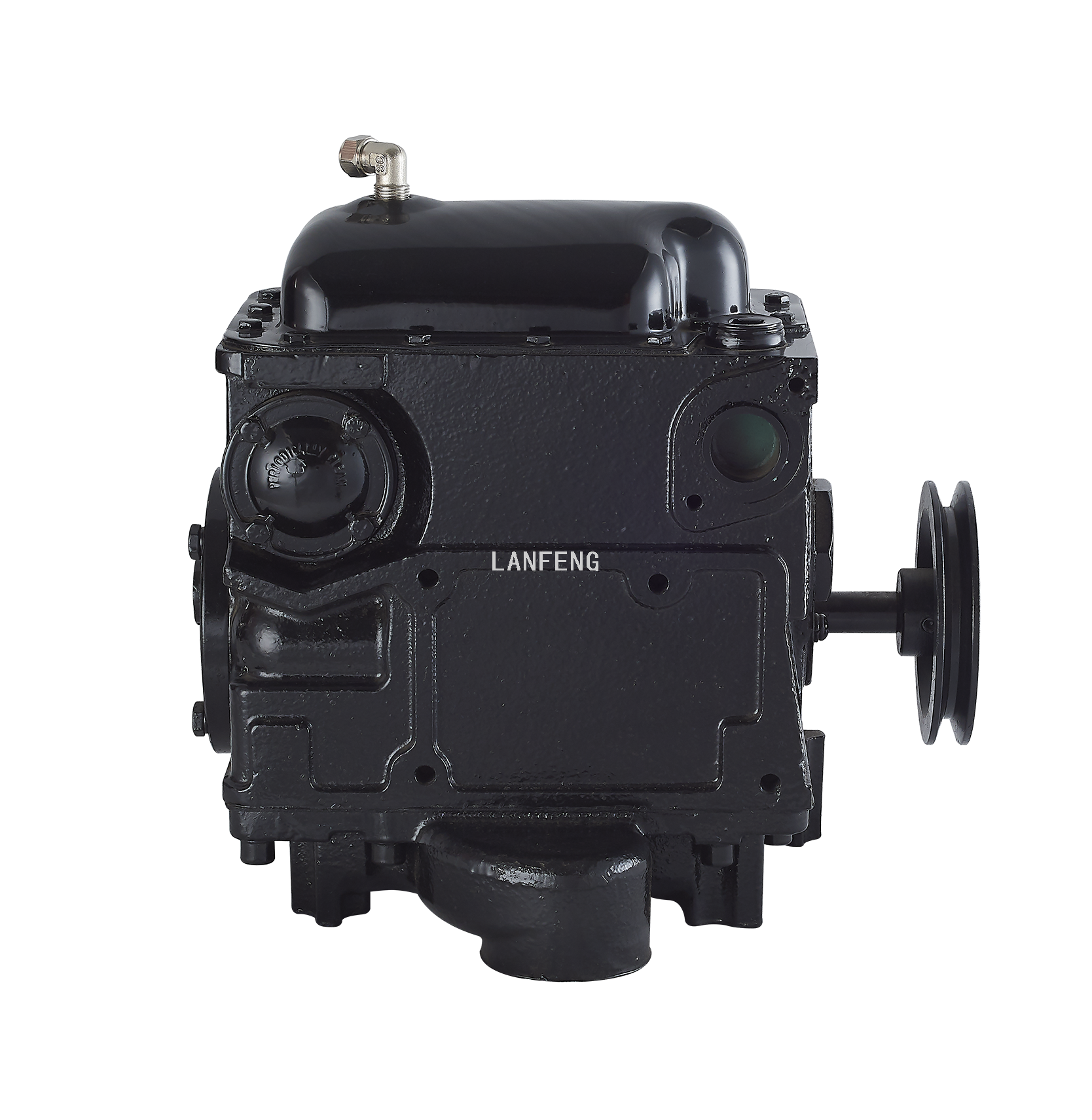

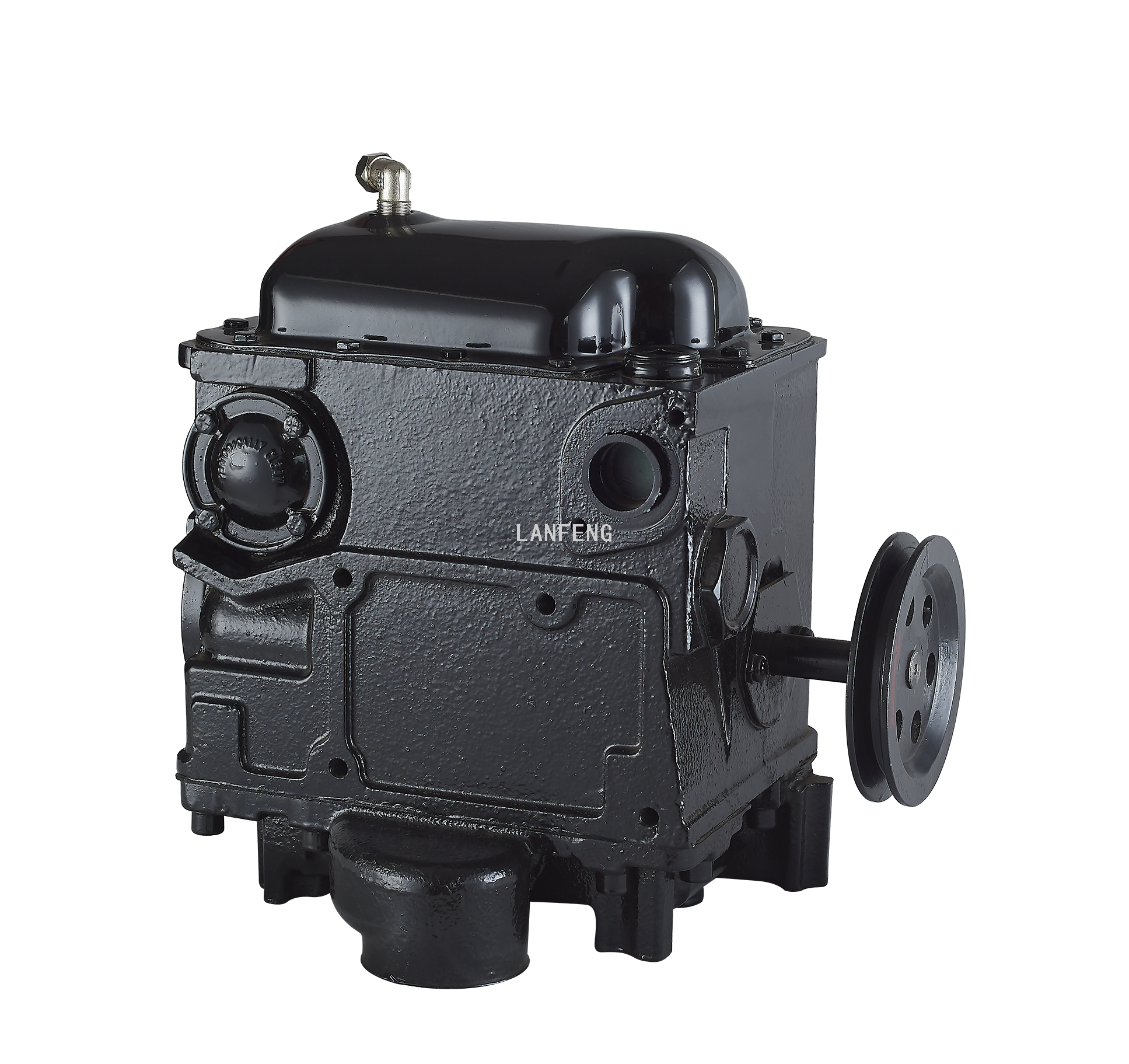

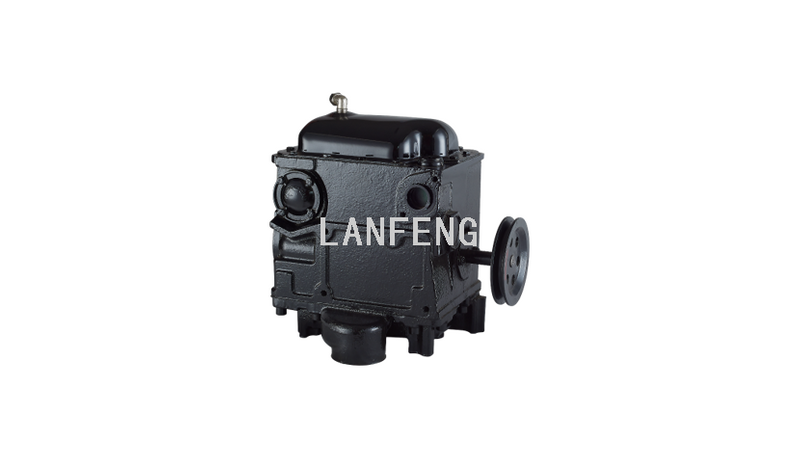

ZCH-50 Gear Pump

ZCH-50 Gear Pump, made by cast lron, is applicable to gasolinekerosene, diesel and gasohol with a type and B type inlets andAir Eliminator, By pass Valve, Check Valve, Inlet Filter are built in

Quantity:
Availability:





Inquire Add to Basket

Model:
ZCH-50 Gear Pump
Brand:
LANFENG

Product Description

Technical specifications

Speed：9OORPM

Flow Rate：45L/min ~55L/min

Vacuum：>0.06MPa

Noise：≤72dB Working

Pressure：1.8~2.4Bar

Dimension：43x32x40cm

Net Weight：32.5Kg

Gross Weight：33.5Kg

Package：1PCS/CTN

Lanfeng Technology Inc is one of the large-scale manufacturers specialized in developing and producing fuel dispenser, gas dispenser and all components for more than 20years.
