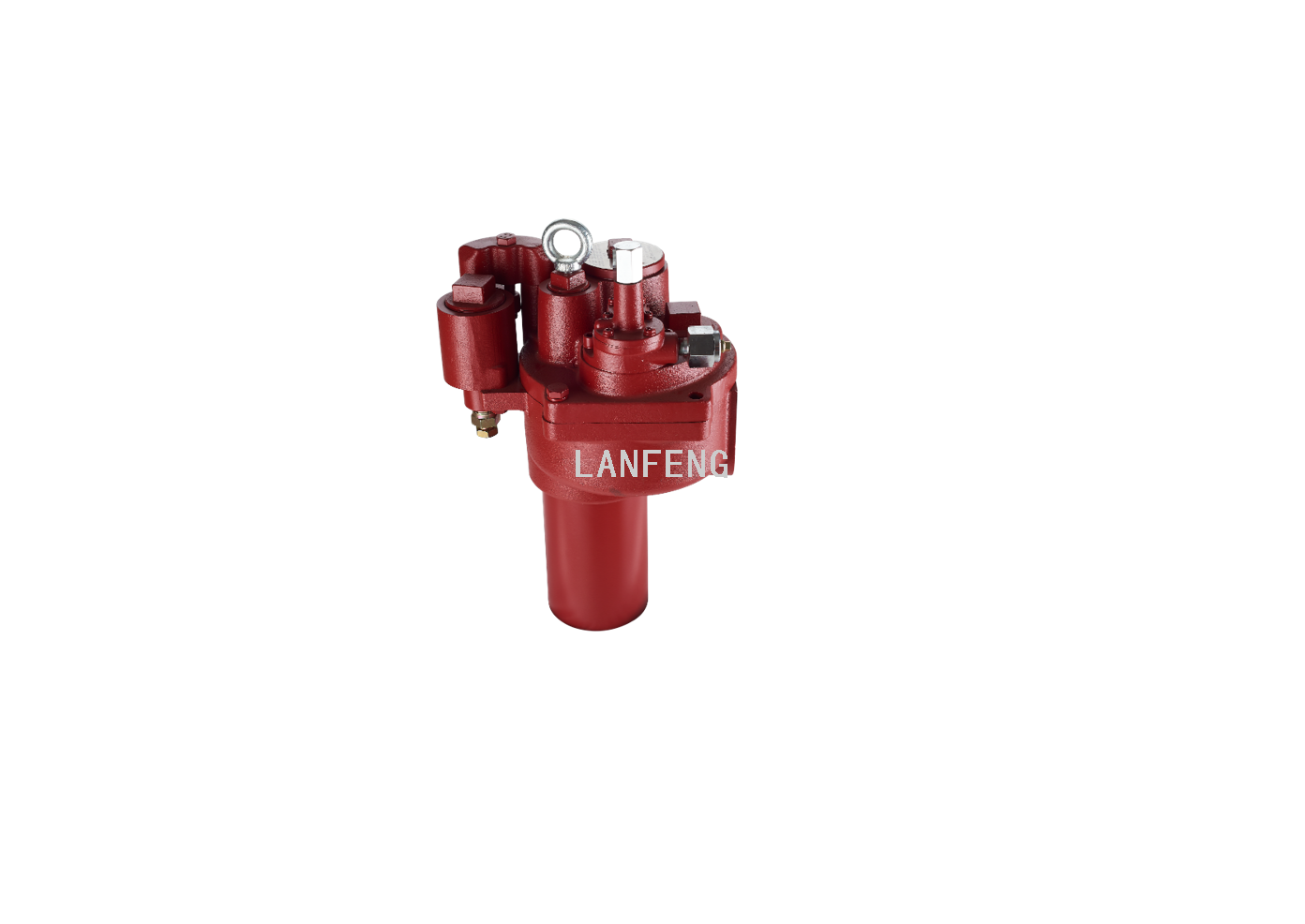

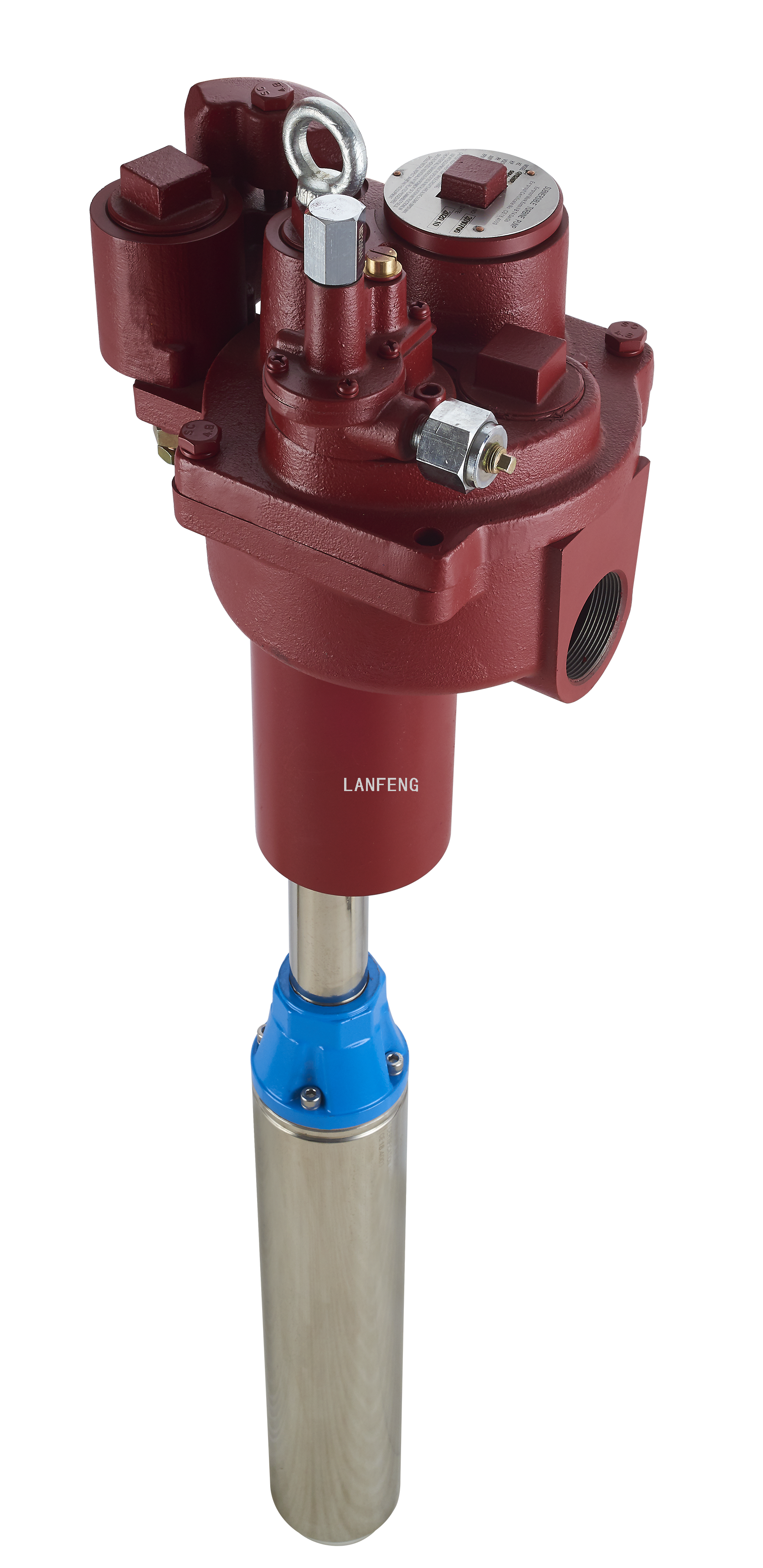

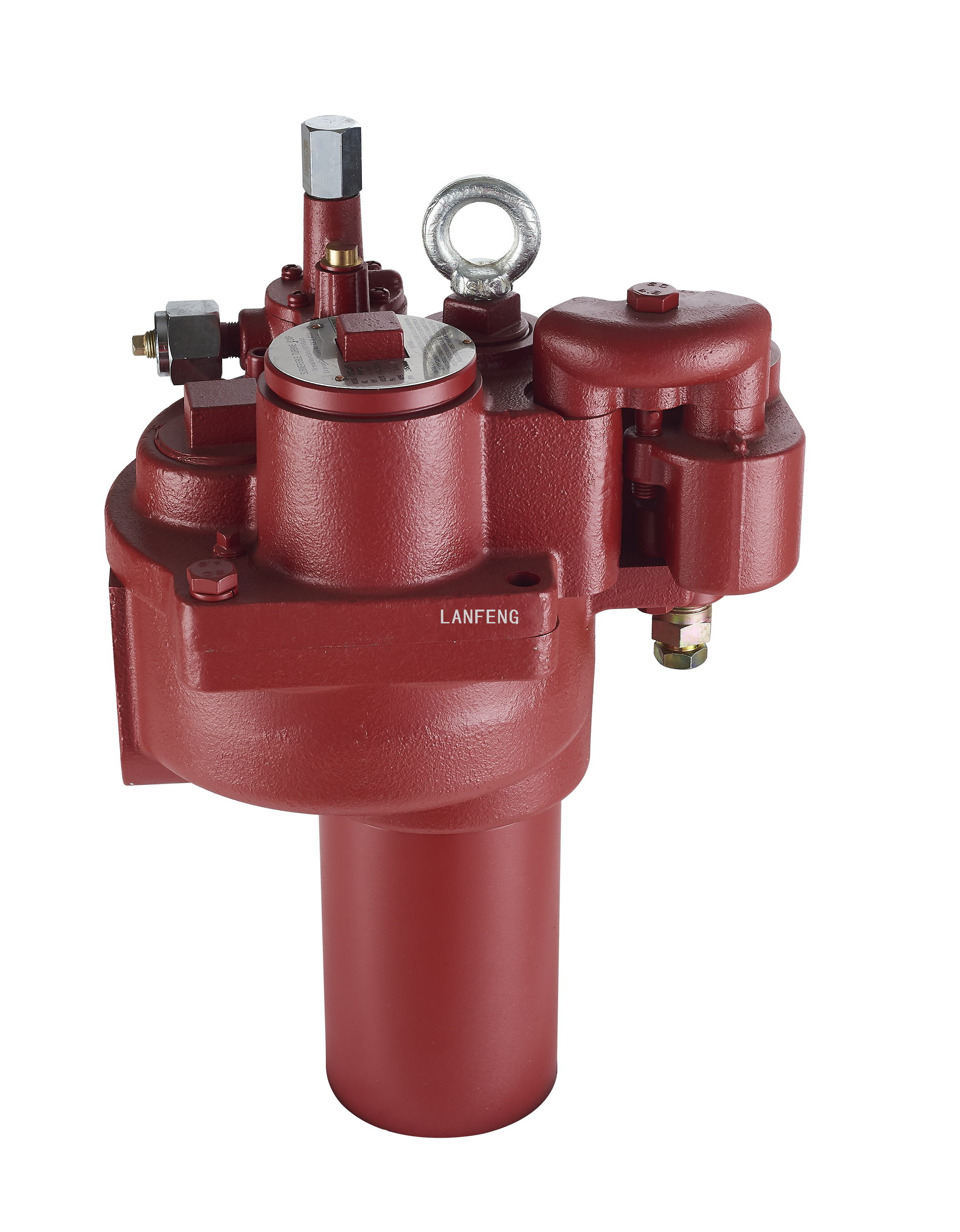

QYB-240 Submersible Turbine Pump

QYB-240 Submersible Turbine Pump Best performance,long time service,lower nEasy to install and service,Quick,simple and safe electrical connectionsMlanifold allows for vertiorizontal discharge,Save time,.lower service costsBuilt with check valve,by pass valve,vacuum valve,For diesel,gasoline,kerosene.etVapor-free,suction head longer than suction pump.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • QYB-240 Submersible Turbine Pump

  • LANFENG

Rating Pressure：0.1MPa

Max.Flow Rate：240L/min

 Speed：2820RPM

 Voltage：220v ,50Hz/380v,50Hz

 Current：9A

Power：1.1Kw

 Ex-proof Class：1PX6

Fixation Thead：BSPF/INPT4"

 inlet：BSPFINPT1

 Outlet：NPT2'

 Dimension：38 x 31 x 38cm 81 x 21 x21cm

 Net Weight：55Kg

Gross Weight：58Kg

Package：1台/2箱 1PC/2CTNS
