OGM-A-25 0val Gear meter

OGM-A-25 0val Gear meter
Overview
OverviewsOGM-Aseries aluminum oval gear meter has the ability to handle a wide range of fluidviscosities with exceptional levels of repeatability and durability,applying in thepetroleum,chemical,food industry,etc.
Advantage
Compact size,easy maintenance Easy to read and operate mechanical display and LCDdisplay.
Horizontally and vertically flexibility of installation options Low pressure drop
Application
Widely used in induestries of petroleum.chemical processing,medicine,transportation, food,

Quantity:
Availability:





Inquire Add to Basket

Model:

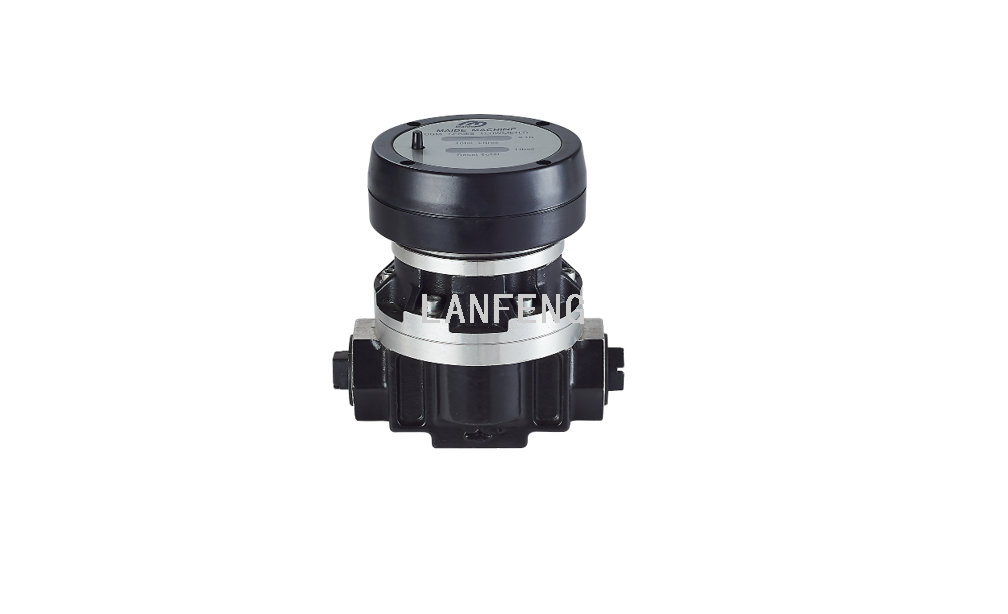

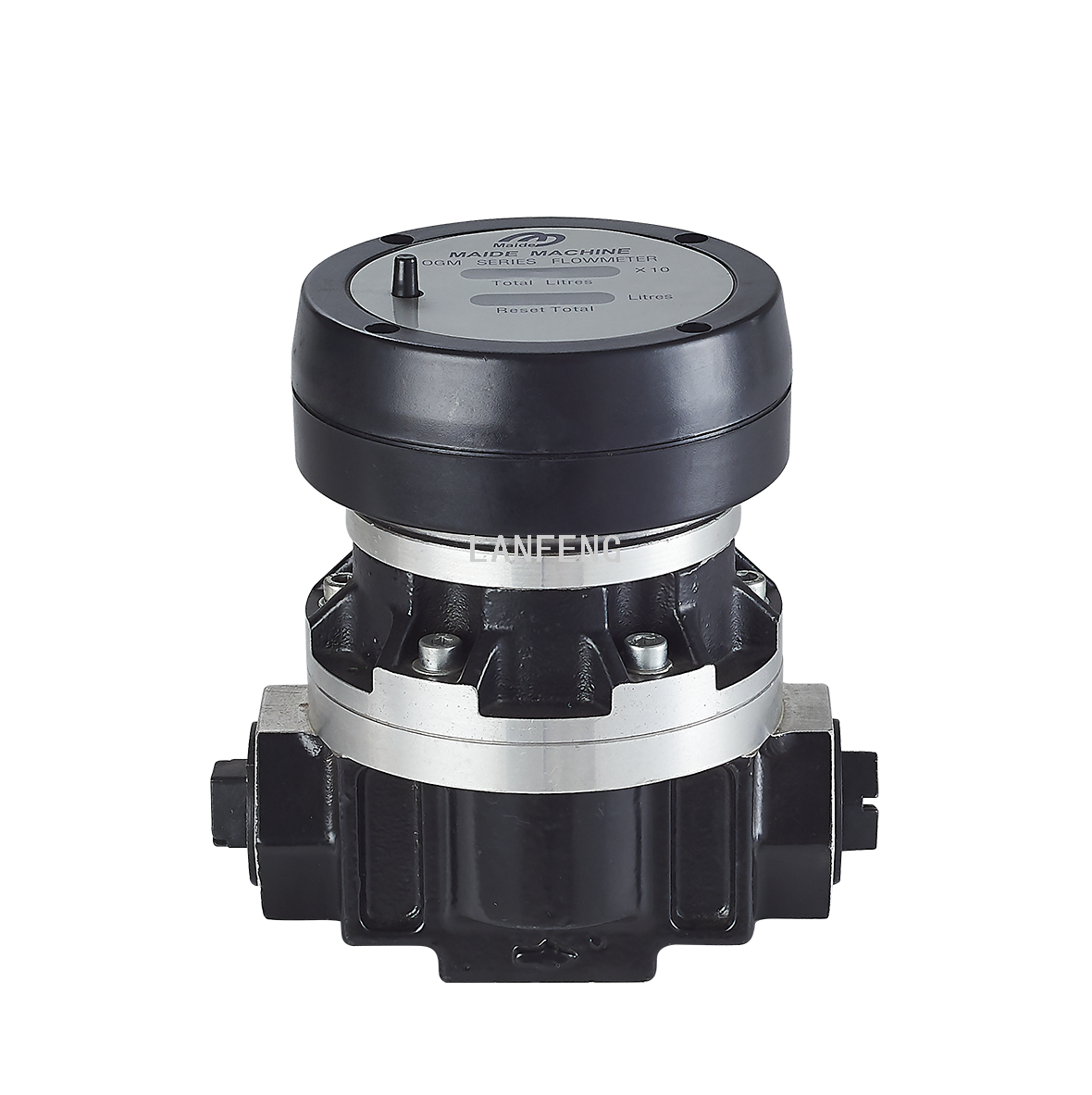

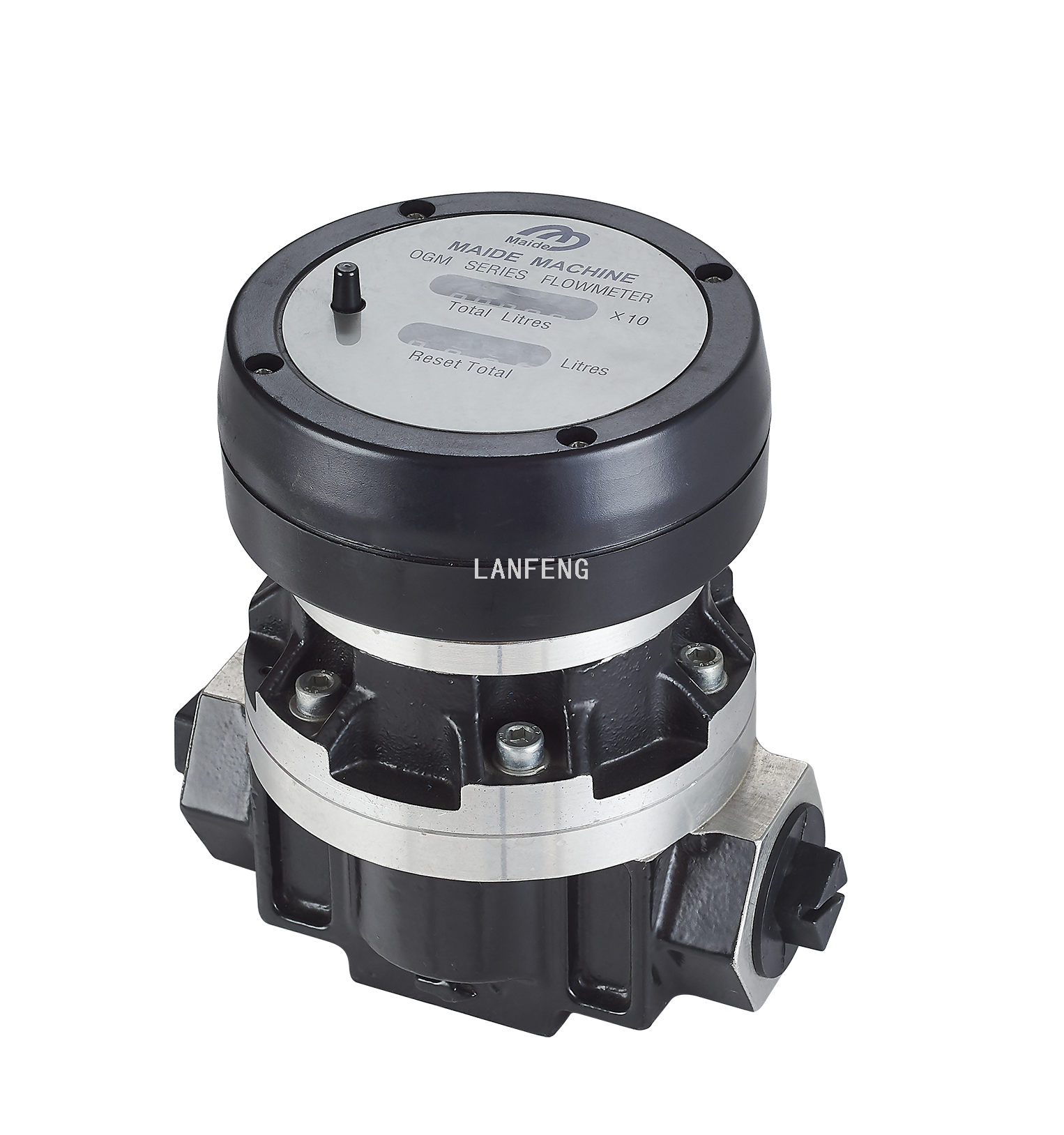

OGM-A-25 0val Gear meter
Brand:
LANFENG

Product Description

Model:OGM-A-25

Size:1"

Flow Range:20~200L/min

Accuracy:+0.5%

Repeatability:≤0.17%

MAx.Viscosity:1000CPS

Max.Pressure:34Bar

Package:35x35x23cm

Net Weight:8Kg

Gross Weight:9Kg

Dimension:4PCS/CTN

Lanfeng Technology Inc is one of the large-scale manufacturers specialized in developing and producing fuel dispenser, gas dispenser and all components for more than 20years.
