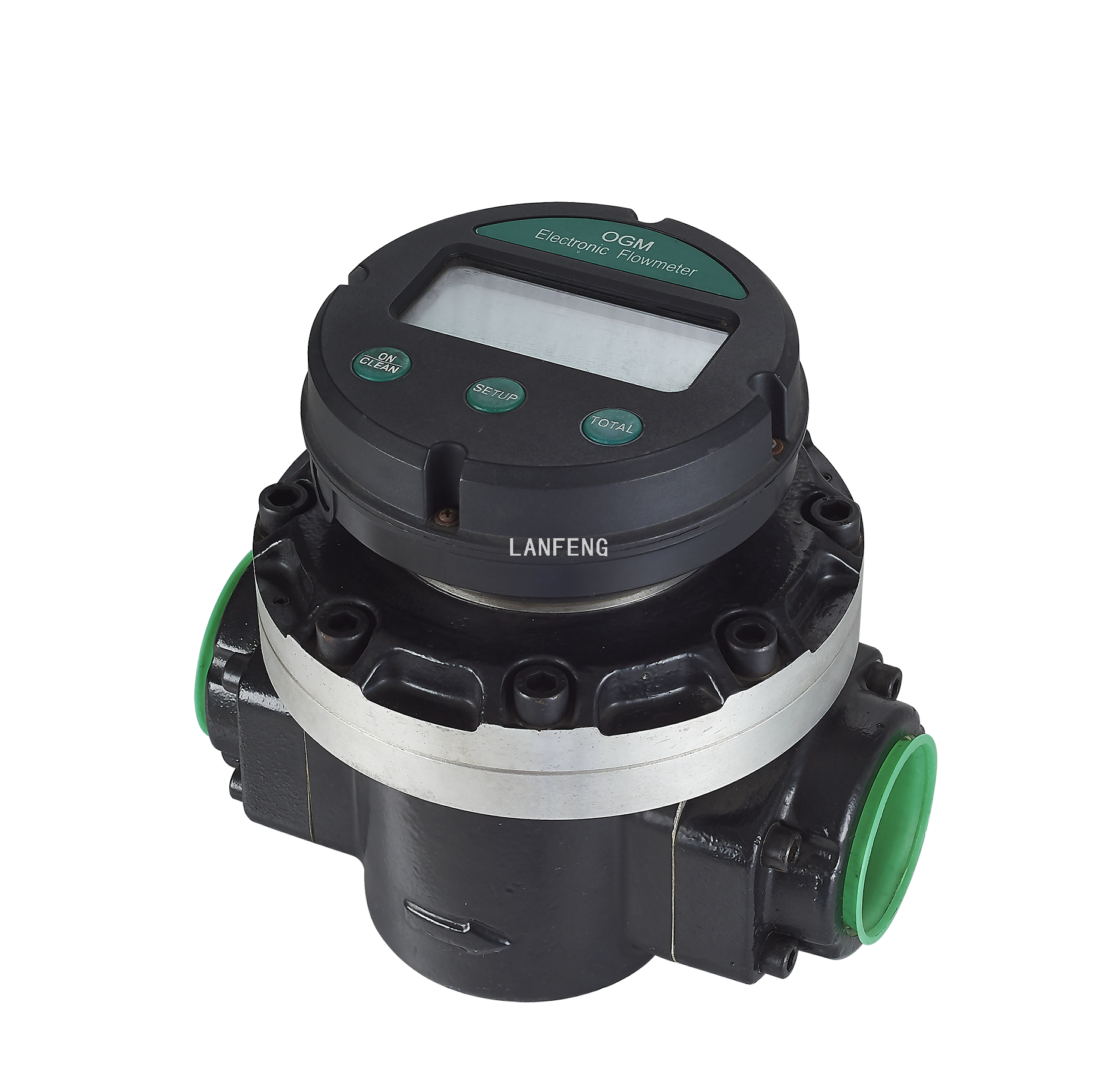

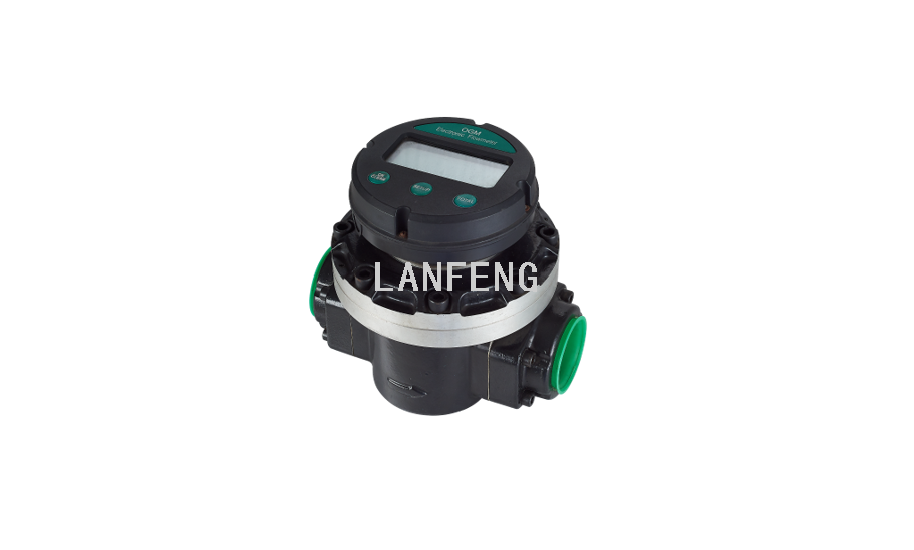

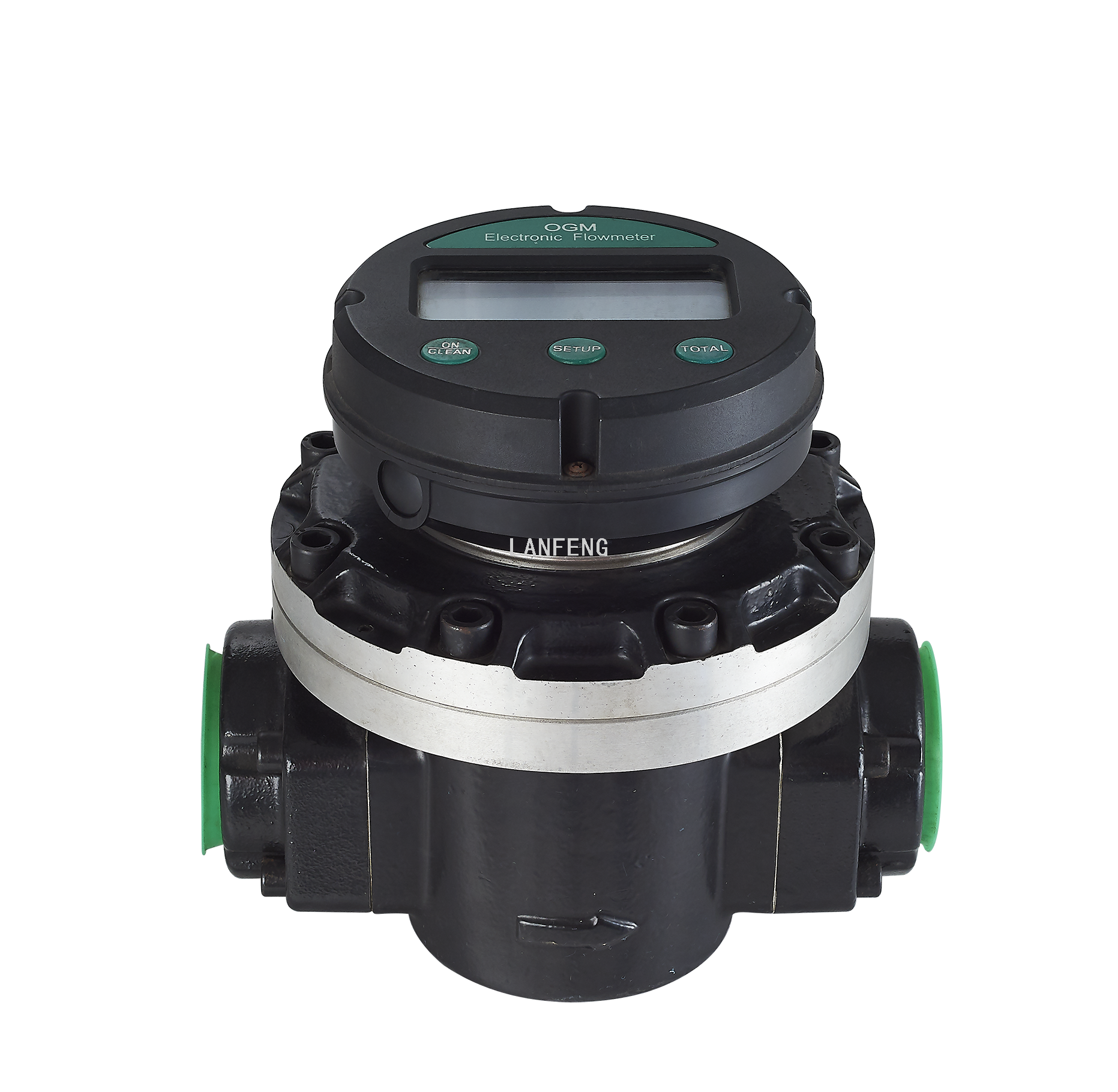

OGM-50-ELCD Oval Gear meter

OGM-Aseries aluminum oval gear meter has the ability to handle a wide range of fluidviscosities with exceptional levels of repeatability and durability,applying in thepetroleum,chemical,food industryetc.
Advantage
Compact size,easy maintenance Easy to read and operate mechanical display and LCD
display.Horizontally and vertically flexibility of installation options Low pressure drop
Application
Widely used in induestries of petroleum.chemical processing,medicine,transportation, food

Quantity:
Availability:





Inquire Add to Basket

Model:
OGM-50-ELCD Oval Gear meter
Brand:
LANFENG

Product Description

Model:OGM-A-50

Size:2''

Flow Range:30~300L/min

Accuracy:±0.5%

Repeatability:≤0.17%

MAX.Viscosity:1000CPS

Max.Pressure:18Bar

Package:49x28x25cm

Net Weight:13Kg

Gross Weight:14Kg

Dimension:2PCS/CTN

Lanfeng Technology Inc is one of the large-scale manufacturers specialized in developing and producing fuel dispenser, gas dispenser and all components for more than 20years.
