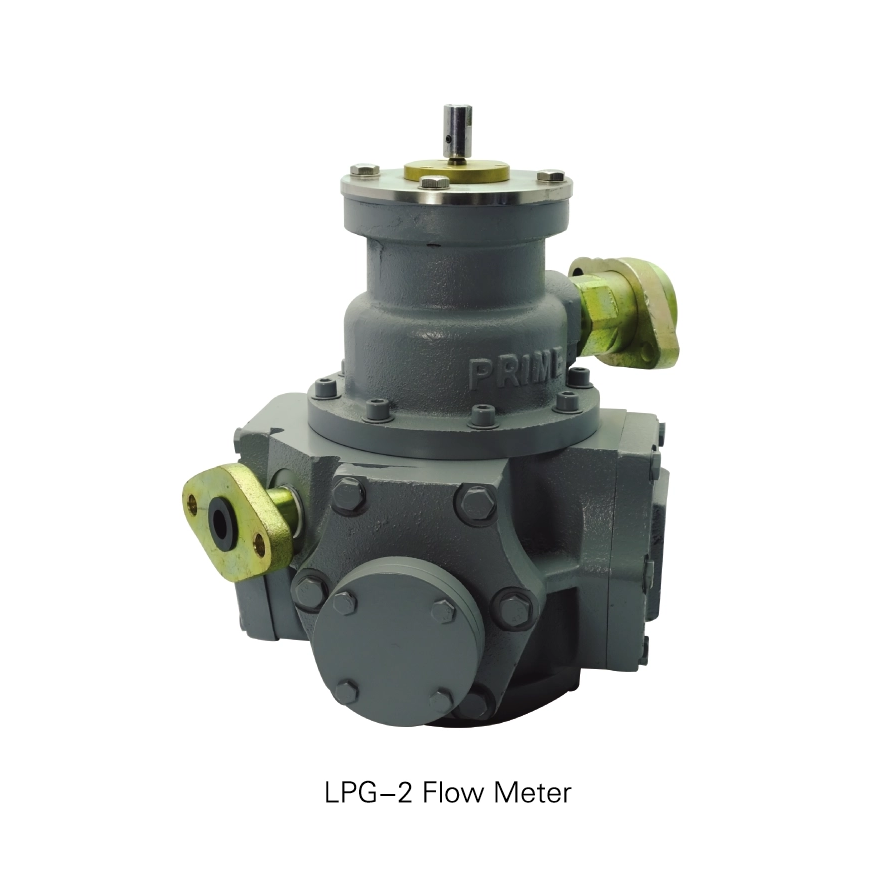

LPG-2 Flow Meter

LPG-2 Flow Meter
Meteriah:
Cast lronLPG-2 flow meter is in construction of stainless steel bush and four-pistons positive displace-ment with check valve built in, with advantanges of high reliability, good wearability, prescisemeasurement, and long life.
Technical $pecification , Package Data:
Max Working Prassure:18 Bar
Flowv Range:5 ~60L
Discharge rate per revolution:0.5LA
Adjustable Minimum Volume:0.1%
AocuraCy:±0.5%
Repeatability:≤0.17%
Dimension:32X27X36cm
Net Weight:31 Kg
Gross Weight:35Kg
Package: 1PC/CTN

Quantity:
Availability:





Inquire Add to Basket

Product Description

LPG-2 Flow Meter

Meteriah:

Cast lronLPG-2 flow meter is in construction of stainless steel bush and four-pistons positive displace-ment with check valve built in, with advantanges of high reliability, good wearability, prescisemeasurement, and long life.

Technical $pecification , Package Data:

Max Working Prassure:18 Bar

Flowv Range:5 ~60L

Discharge rate per revolution:0.5LA

Adjustable Minimum Volume:0.1%

AocuraCy:±0.5%

Repeatability:≤0.17%

Dimension:32X27X36cm

Net Weight:31 Kg

Gross Weight:35Kg

Package: 1PC/CTN

Lanfeng Technology Inc is one of the large-scale manufacturers specialized in developing and producing fuel dispenser, gas dispenser and all components for more than 20years.
